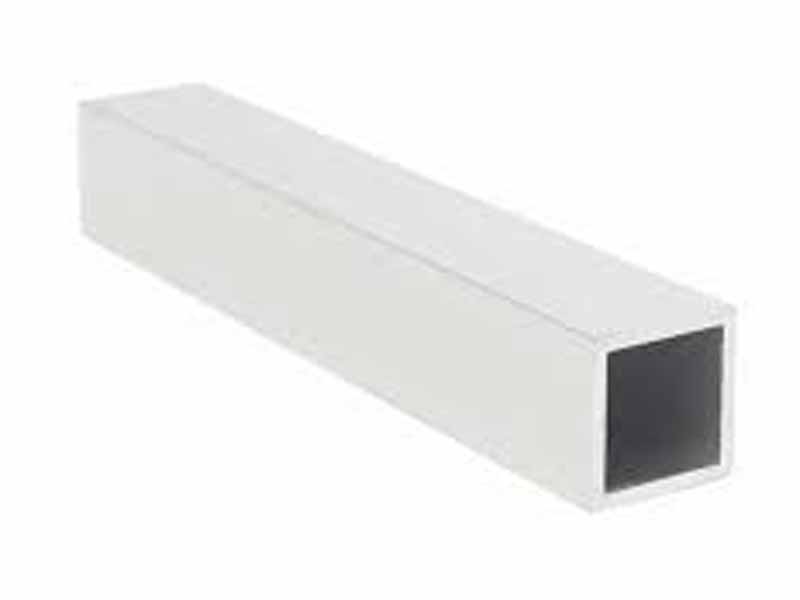

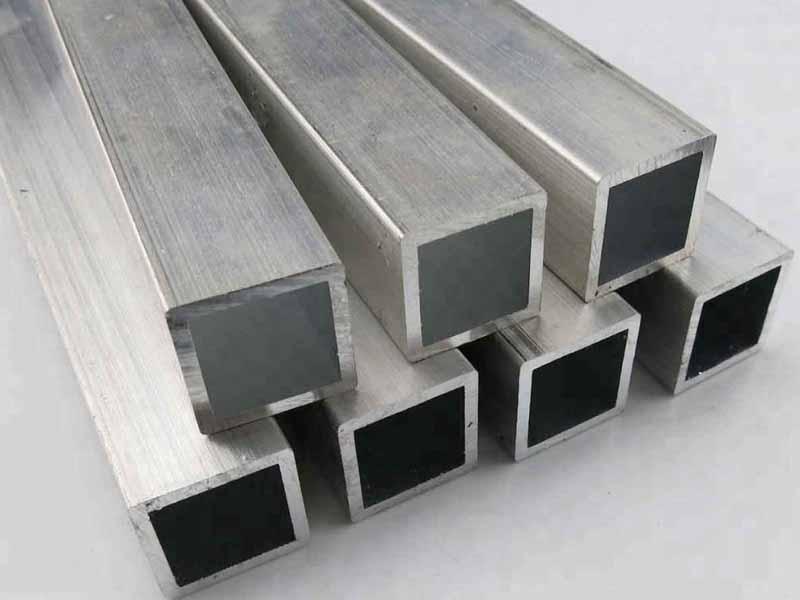

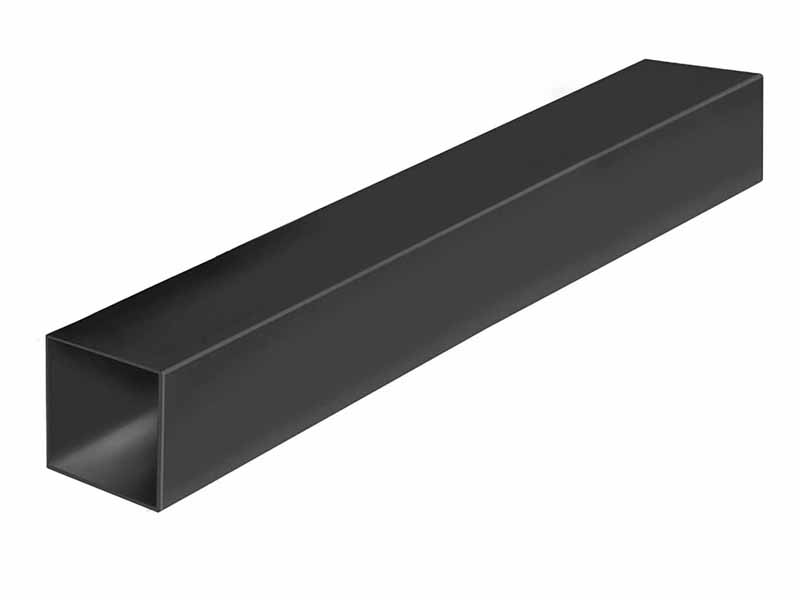

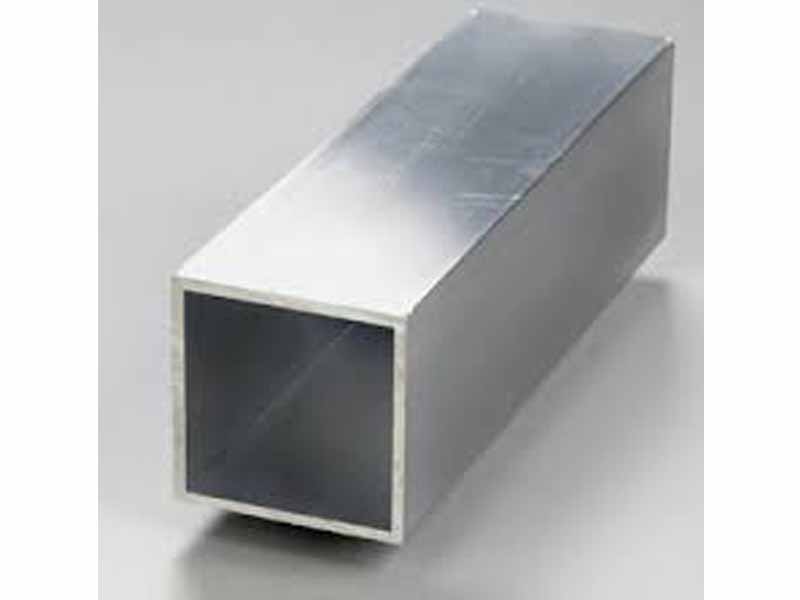

Aluminium Square Tube

Name: Aluminium Square Tube
Brand: Shenzhen Oriental Turdo Ironwares Co., Ltd.

Extruded aluminium square tube is frequently used in the places where lightweight and corrosion resistance is important, such as framework, support columns, gates and fencing, handrails and protective barriers.

In Otalum, we offer a wide range of square aluminium profiles with a variety of alloys, sizes and finishes. All of our square aluminium extrusions can also be cut to a specific size if the existing products cannot meet your requirement.

Precise cutting to length and processing services are available with the fastest lead time.

Get a Quote

Features of Aluminum Square Tube

Alloy	Standard	Surface Treatment	Further Process	Certificate
6005 T5/T6, 6060 T5/T6, 6061 T4/T6, 6063 T5/T6, 6463 T5/T6, 6082 T5/T6, etc.	GB 5237-2008, JISH, AAMA, GB, BS, En	Mill finish, Powder Coating, Anodizing, Wooden grain, Electrophoresis, PVDF Painting, Sanding blasting, Polishing, etc.	Drilling, Bending, Welding, Precise cutting, Punching, Fabrication of finished products, etc.	CE, DNV, TUV, ISO9001

Specifications of Aluminum Square Tube

Aluminum Square Tube

B=length, mm

T=thickness, mm

Weight(kg/m)

Item	B	T	Weight(kg/m)
ARC063	10	1	0.097
SQ10X10X1.5	10	1.5	0.139
AU105	12.6	1.5	0.181
SQ12.7X12.7X1.0	12.7	1	0.128
OS-SQ023	12.7	1.27	0.157
TC126	12.7	1.5	0.181
SQ15X15X0.8	15	0.8	0.121
ARC064	15	1	0.15
ZY-157-007	15.5	1.5	0.227
SQ15.88X1.2	15.88	1.2	0.189
AF006	15.88	1.27	0.2
SQ1616T12	16	1.2	0.192
ZY-157-003	16	1.5	0.235
SQ1616T16	16	1.6	0.248
SQ19X19X1.0	19	1	0.194
70049KMB	19	1.19	0.23
SQ19X19X1.2	19	1.2	0.23
SQ19X19X1.6	19	1.6	0.3
AIX-40134	19.05	1.15	0.221
AF007	19.05	1.27	0.243
SQ19.05X19.05X1.47	19.05	1.47	0.278
QS-SQ010	19.05	1.57	0.297
70010KMB	19.05	1.6	0.302
SQ19.05X19.05X2.28	19.05	2.28	0.413
OS-SQ009	19.05	2.36	0.427
TC195	19.05	3	0.521
OS-SQ011	19.05	3.17	0.543
0369-0.18	20	0.8	0.165
0369-1.0	20	1	0.205
0369-1.2	20	1.2	0.243
ZY-263-014	20	1.45	0.292
SQ2020T15	20	1.5	0.3
SQ2020T16	20	1.6	0.32
SQ20X20X2.0	20	2	0.393
0365-0.8	25	0.8	0.208
0365-0.9	25	0.9	0.235
0365-1.0	25	1	0.259
0365-1.2	25	1.2	0.308
ZY-236-015	25	1.45	0.37
SQ2525T16	25	1.6	0.405
ZY67176	25	1.9	0.475
0365-2.0	25	2	0.497
SQ2525T30	25	3	0.713
M9533	25.4	0.8	0.216
TC277	25.4	0.91	0.24
ZY-236-G800	25.4	1.05	0.275
AZ880	25.4	1.14	0.3
OS-SQ040	25.4	1.42	0.367
70008KMB	25.4	1.52	0.392
OS-SQ015	25.4	1.57	0.405
SQ25.4X25.4X2	25.4	2	0.511
OS-SQ017	25.4	2.36	0.586
OS-SQ013	25.4	3.18	0.764
0374-1.0	30	1	0.313
ZY-S01-780	30	1.1	0.347
ZY-236-016	30	1.45	0.448
ZYW0006	30	1.5	0.462
SQ3030T20	30	2	0.605
TC266	31.75	2.24	0.713
TC235	31.75	3	0.932
70063KMB	31.75	3.18	0.991
SQ32X32X1.0	32	1	0.339
SQ3232T16	32	1.6	0.527
SQ3232T20	32	2	0.648
AM8005	32	3	0.94
SQ33X33X33X1.4	33	1.4	0.483
0370-1.0	38	1	0.4
0370-1.2	38	1.2	0.478
SQ38X38X1.4	38	1.4	0.554
SQ38X38X1.6	38	1.6	0.629
SQ38X38X2.5	38	2.5	0.959
TC254	38.1	1.57	0.618
TC232	38.1	2.24	0.867
AF7506	38.1	2.29	0.886
TC233	38.1	3	1.137
70033KMB	38.1	3.18	1.216
ZY-S01-461	40	1	0.426
SQ40X40X1.1	40	1.1	0.462
ZY-236-CHA0204P	40	1.15	0.492
ZY-236-017	40	1.45	0.605
SQ4040T16	40	1.6	0.664
SQ40X40X2	40	2	0.821
ZY-527-KS9054	40	2	0.83
SQ4040T25	40	2.5	1.013
SQ40X40X3	40	3	1.199
AF011	41.28	3.18	1.307
SQ44X44X1.5	44	1.5	0.689
SQ44X44X2	44	2	0.907
M9532	44.45	0.8	0.382
TC470	44.45	2.24	1.021
SQ44.5X44.5X1.7	44.5	1.7	0.794
ZY-232-TR101	45	1.4	0.666
SQ4545T16	45	1.6	0.751
ZYMQ14434	45	4	1.791
TC221	47.63	1.07	0.537
ZY-594-007	50	1	0.535
SQ50X50X1.2	50	1.2	0.632
SQ50X50X1.4	50	1.4	0.734
SQ5050T15	50	1.5	0.786
SQ5050T16	50	1.6	0.837
SQ50X50X1.8	50	1.8	0.937
SQ50X50X1.9	50	1.9	0.991
SQ5050T20	50	2	1.037
SQ50X50X2.2	50	2.2	1.137
SQ5050T25	50	2.5	1.283
ZY-302-002	50	2.83	1.442
SQ5050T30	50	3	1.523
SQ50X50X4	50	4	1.987
SQ50X50X5	50	5	2.457
WT1003	50.29	2.29	1.188
TC220	50.8	1.07	0.575
ZY-232-TR117	50.8	1.4	0.748
AF010	50.8	1.52	0.807
TC364	50.8	1.57	0.834
SQ50.8X50.8X2	50.8	2	1.065
70017KMB	50.8	2.29	1.23
OS-SQ014	50.8	2.36	1.234
AES062	50.8	2.87	1.485
TC365	50.8	3	1.55
OS-SQ018	50.8	3.17	1.631
TC267	50.8	4.57	2.282
OS-SQ037	50.8	4.76	2.368
TC283	50.8	6.1	2.946
OS-SQ034	50.8	6.35	3.048
SQ51X51X3.2	51	3.2	1.671
CF-ART-06	55	1.6	0.923
SQ60X60X1.15	60	1.15	0.732
SQ60X60X1.4	60	1.4	0.886
SQ6060T20	60	2	1.253
SQ60X60X3.0	60	3	1.847
ZY-116-058	60	5	2.779
TC366	63.5	3	1.96
OS-SQ020	63.5	3.2	2.084
SQ64.2X64.2X1.1	64.2	1.1	0.751
CF-B022	65	2.5	1.706
SQ7070T15	70	1.5	1.11
SQ7070T25	70	2.5	1.823
SQ75X75X1.6	75	1.6	1.269
0372-1.2	76	1.2	0.969
SQ76X76X1.8	76	1.8	1.442
SQ76X76X2.0	76	2	1.616
SQ76X76X3.2	76	3.2	2.544
TC236	76.2	2.24	1.79
OS-SQ027	76.2	2.36	1.882
TC244	76.2	3	2.371
OS-SQ029	76.2	4.75	3.667
TC231	76.2	5.84	4.439
OS-SQ032	76.2	6.35	4.79
SQ80X80X1.2	80	1.2	1.021
SQ80X80X2.5	80	2.5	2.093
ZY8131	85	1.2	1.106
ZYSQ8888-1.4	88	1.4	1.31
SQ88X88X2.0	88	2	1.878
SQ90X90X1.8	90	1.8	1.716
0373-1.4	100	1.4	1.49
0373-1.7	100	1.7	1.804
CF-EXMA-6	100	2	2.117
SQ100X100X2.8	100	2.8	2.94
SQ100X100X3.2	100	3.2	3.382
ZY-S19-166	100	8	8.034
AABE-090	101.6	2	2.152
TC245	101.6	3	3.194
70019KMB	101.6	3.18	3.468
TC321	101.6	4.57	4.79
TC142	101.6	5.84	6.04
CRL180	101.6	6.35	6.531
AZ878	101.6	12.7	12.193
SQ120X120X2	120	2	2.549
SQ120X120X2.5	120	2.5	3.173
AZ838	127	6.35	8.276
SQ130X130X2.5	130	2.5	3.481
ZY-371-YG01	130	3	4.161
SQ150X150X2.4	150	2.4	3.826
AV2025	150	3	4.763
TC399	152.4	3	4.895
OS-SQ033	152.4	3.17	5.108
TC350	152.4	6.35	10.16
SQ160X160X3.0	160	3	5.087
AZ850	177.8	3.18	5.997
SQ180X180T3.5	180	3.5	6.746
ZY-067-069	200	4	8.467
TC360	203.2	4.52	9.8
OS-SQ036	203.2	4.78	10.244
AZ855	203.2	12.7	26.128
