Name: Aluminium Round Tube
Brand: Shenzhen Oriental Turdo Ironwares Co., Ltd.

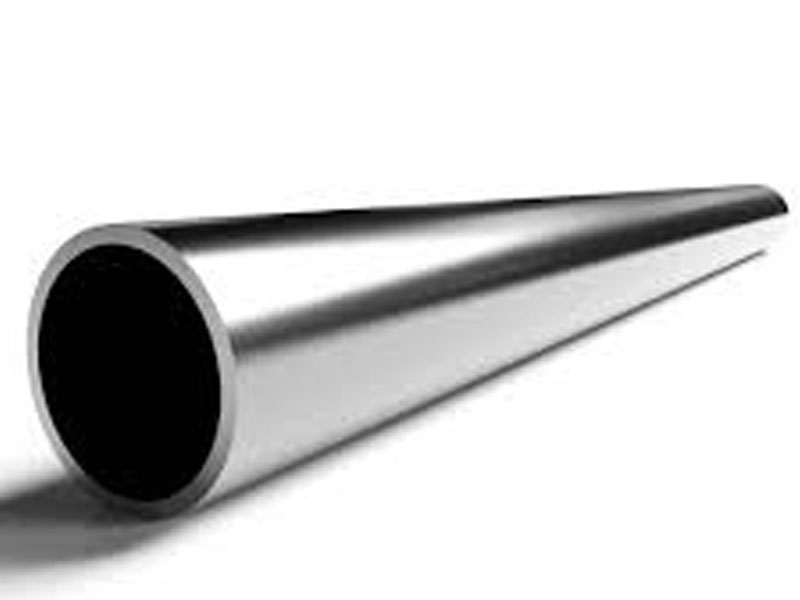

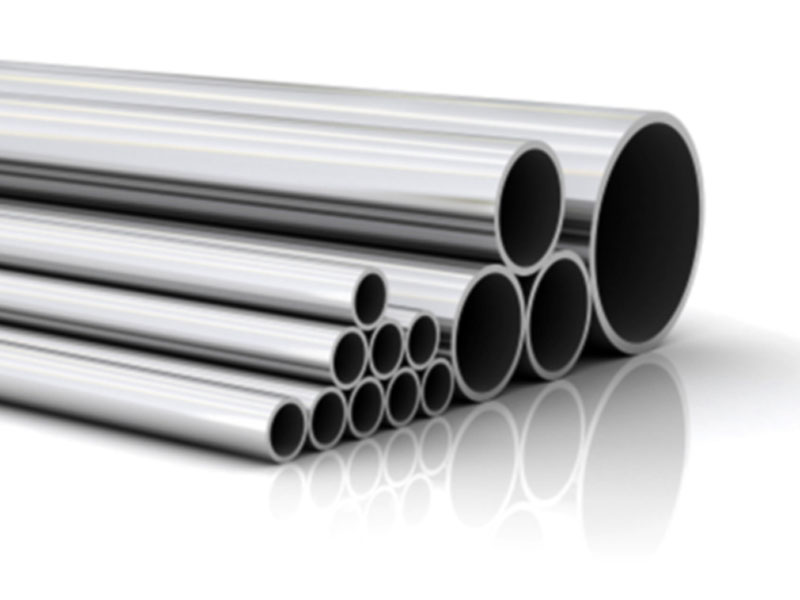

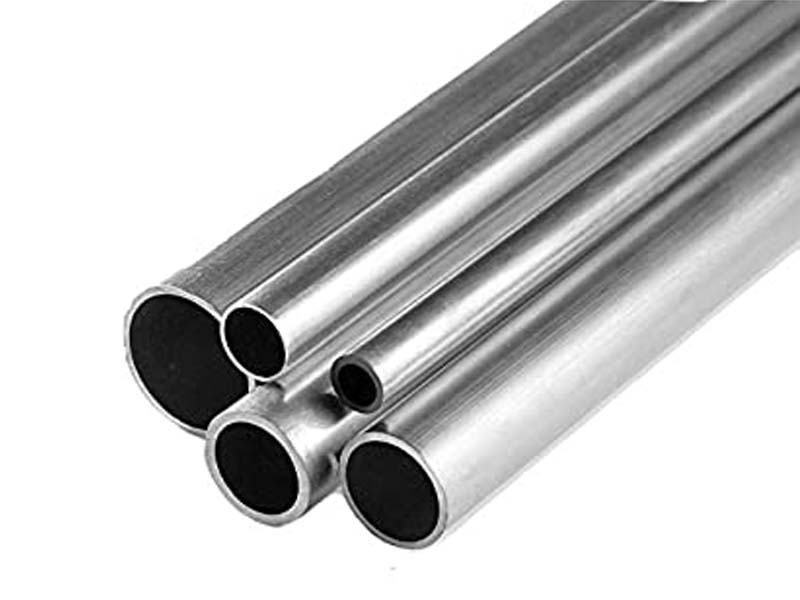

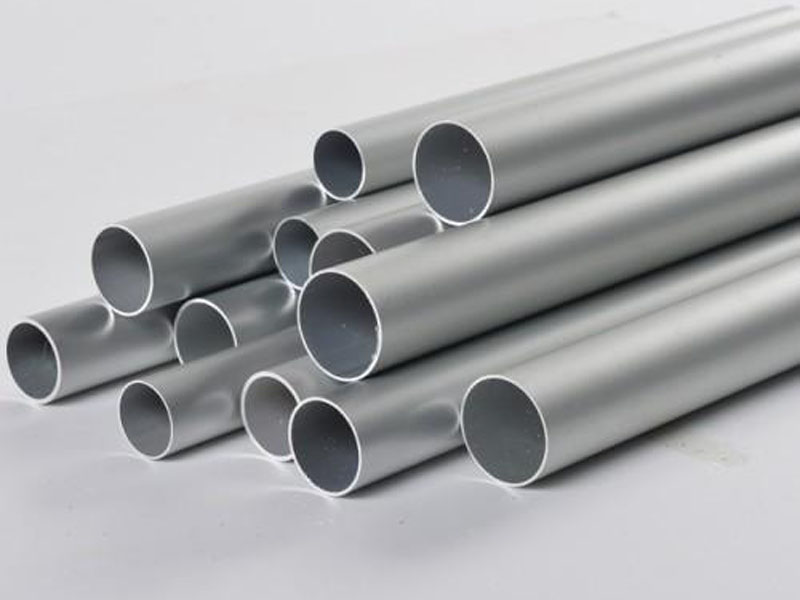

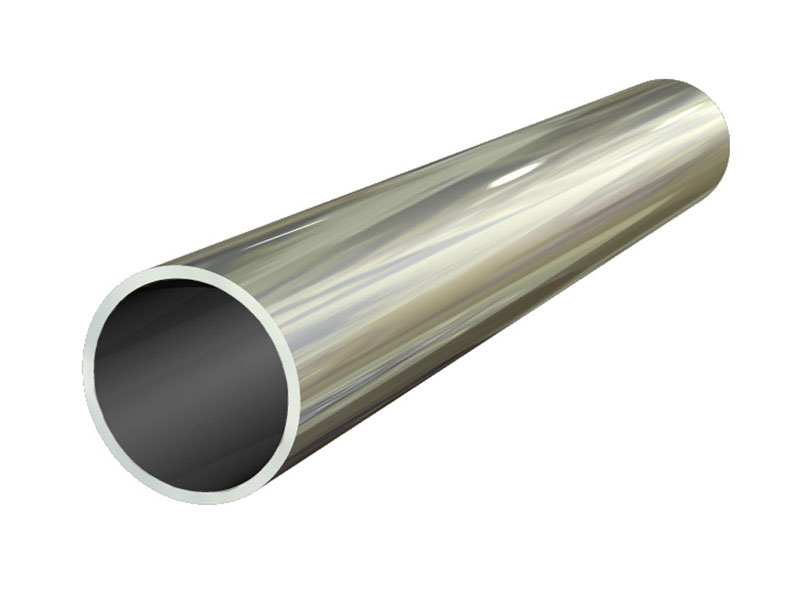

Aluminium Round Tube

Aluminium round tube or pipe is used in a lot of structural applications. It is also popular in the transportation industry (like bicycle frames) due to its lightweight. It is measured by initially taking the outside diameter and then the wall thickness.

In Otalum, we offer a wide range of aluminium round tube/pipe with a variety of alloys, sizes and finishes. Moreover, all of our round aluminium tubes can also be cut to different sizes in case the existing products cannot meet your personal needs.

As a professional aluminium extrusion factory, Otalum provides precise cutting to length and diverse processing services with the fastest lead time.

Features of Aluminum Round Tube

Alloy

Standard

Surface Treatment

Further Process

Certificate

6005 T5/T6, 6060 T5/T6, 6061 T4/T6, 6063 T5/T6, 6463 T5/T6, 6082 T5/T6, etc.

GB 5237-2008, JISH, AAMA, GB, BS, En

Mill finish, Powder Coating, Anodizing, Wooden grain, Electrophoresis, PVDF Painting, Sanding blasting, Polishing, etc.

Drilling, Bending, Welding, Precise cutting, Punching, Fabrication of finished products, etc.

CE, DNV, TUV, ISO9001

Specifications of Aluminum Round Tube

B=length, mm

D=diameter, mm

Weight(kg/m)

Item	D	T	Weight(kg/m)
ARC070	6	1	0.043
ZY-236-CHB0442	6.35	0.95	0.043
RD7.93R1.42	7.39	1.42	0.078
ZY-DSSX13	7.8	1.4	0.076
ZY-236-CHB0441	7.9	0.95	0.057
RD7.93R1.42	7.93	1.42	0.078
ARC057	8	1	0.059
CF-RD8012	8	1.2	0.07
ZY-286-147	9	0.9	0.063
ZY-236-CHB0440	9.5	0.95	0.07
ZY-236-CHB0400	9.5	1.2	0.084
AV1103R	10	1	0.076
ZY-050-063	10	1.5	0.108
AI-RD10R16	10	1.6	0.113
ZY-438-194	11	1.2	0.1
ZY66520	11.6	1.2	0.107
ZY67001	11.6	1.5	0.131
CF-RD1210	12	1	0.097
RD12R12	12	1.2	0.111
RD12R16	12	1.6	0.14
AIX-70500	12.65	0.9	0.089
ZY-236-CHB0420	12.7	0.95	0.095
AM2020	12.7	1.42	0.135
ZY-202-001	12.8	1.5	0.143
ZY-438-423	14	1.2	0.131
ZY-190-009	14	1.5	0.162
RL10045	14	1.6	0.167
ZYH0071	15	1	0.12
AU106	15.7	1.5	0.183
ZY-236-CHB0421	15.8	0.95	0.119
DY990	15.85	1.53	0.186
RD1588R12	15.88	1.2	0.15
RD1588R142	15.88	1.42	0.179
ARC037	16	1	0.127
RD16X1.2	16	1.2	0.151
RD16X1.6	16	1.6	0.194
RD16X1.8	16	1.8	0.216
TC141	17.15	2.3	0.292
RD18X1	18	1	0.143
ZY66506	18.5	2.7	0.369
RD19X0.9	19	0.9	0.138
ZY-236-031	19	0.95	0.146
RD19X1	19	1	0.154
RD19R12	19	1.2	0.181
RD19X1.6	19	1.6	0.235
ZY-150-005	19	3	0.408
RW1727	19.05	1.65	0.243
RD1905R305	19.05	3.05	0.415
ZY-001-071	19.05	3.18	0.427
AV1500R	19.5	1.2	0.188
HA116	19.68	6.35	0.718
ZY-056-029	20	0.9	0.146
ARC054	20	1	0.162
RD20X1.2	20	1.2	0.192
RD20X1.6	20	1.6	0.254
RD20X2.0	20	2	0.305
ZYW0838	20	3	0.432
ZY-S11-045	20	4	2.195
RD21.2R16	21.2	1.6	0.267
TC123	21.34	2.77	0.437
RD22X1	22	1	0.178
ZY66527	22	1.5	0.267
ZY-ZLD21	22	3.95	0.605
ZY-ZLD17	22	4	0.605
ZY-YC02	22	5	0.721
RD22.2R0.9	22.2	0.9	0.162
ZY-236-032	22.2	0.95	0.17
RD22.2X1.4	22.2	1.4	0.248
RD22.2X2.4	22.2	2.4	0.402
AV1108R	22.23	1.27	0.229
ZYW0386	24	6	1.007
RD25X1	25	1	0.203
AM5009R	25	1.2	0.243
ZY-S01-779	25	1.35	0.273
ZY-061-017	25	1.5	0.3
AM5010	25	1.6	0.319
RD25X2	25	2	0.395
ZY66926	25	2.5	0.483
AM5011	25	3	0.565
ZY-ZLD16	25	9.1	1.229
ZY-236-033	25.4	0.95	0.197
RD25.4X1.2	25.4	1.2	0.248
TC333	25.4	1.57	0.319
RD25.4X1.8	25.4	1.8	0.36
RD25.4X2	25.4	2	0.397
TC199	25.4	3	0.57
OS-RD007	25.4	3.17	0.597
ZYW0837	26	6.5	1.075
RD263R615	26.3	6.15	1.05
TC110	26.67	2.87	0.581
AZ877	26.67	3.91	0.756
RD28R12	28	1.2	0.274
ZY-S01-613	28	1.5	0.341
CE003	28.52	1.6	0.373
RD2858R12	28.58	1.2	0.279
CE011	28.91	2.04	0.47
RD29.6X1.6	29.6	1.6	0.381
CE008	29.64	2.29	0.535
RD30R1	30	1	0.246
ZY66198	30	4	0.883
RD31.75R1.1	31.75	1.1	0.296
TC342	31.75	1.6	0.41
AZ842	31.75	2.29	0.572
RD31.75X2.5	31.75	2.5	0.621
RD32X1	32	1	0.262
ZY-438-421	32	1.2	0.317
RD32R16	32	1.6	0.415
RD32R30	32	3	0.737
CE012	32.11	1.78	0.464
ZY-170-001	32.6	1	0.267
CE009	32.61	2.03	0.532
TC111	33.4	3.38	0.861
RD335R73	33.5	7.3	1.629
RD34X1.4	34	1.4	0.386
RD35R1	35	1	0.292
RD35X1.5	35	1.5	0.427
RD35X2.25	35	2.25	0.631
ZY-ZLD02	35	6	1.477
ZY-114-008	35	11	2.238
ZY-017-035	35.5	2.85	0.788
RD38X1.45	38	1.45	0.453
RD38R18	38	1.8	0.564
RD38R2	38	2	0.61
RD38X3	38	3	0.891
AZ843	38.1	1.65	0.51
TC290	38.1	2.24	0.68
AZ844	38.1	2.38	0.721
TC200	38.1	3	0.894
OS-RD001	38.1	3.175	0.94
JED050	38.1	3.68	1.075
AZ867	38.1	4.78	1.35
AZ845	38.1	6.35	1.709
ZY-S19-043	39.5	2	0.64
ZY-371-237	40	1.5	0.494
RD40R16	40	1.6	0.523
AM5017	40	3	0.953
ZY-ZLD03	40	6.5	1.847
AV1298R	40	7.62	2.118
RW27353	41.66	2.77	0.923
ZY-438-420	42	1.2	0.42
RD42X3.6	42	3.6	1.185
TC052	42.16	2.76	0.923
OS-RD003	42.16	3.56	1.164
TC194	42.16	4.85	1.534
RD43R55	43	5.5	1.75
RD432R595	43.2	5.95	1.886
AV1957N	44	7	2.198
AZ846	44.45	3.18	1.112
AQ1362	44.45	3.25	1.137
ZY-206-003	44.45	14.2	3.648
RD45X2.5	45	2.5	0.901
RD45R105	45	10.5	3.084
ZY-170-002	45.2	0.8	0.302
AOI-001	46.15	6.73	2.355
AM2252	46.99	1.1	0.424
DCR002	47.5	1.6	0.624
RD48R1.5	48	1.5	0.591
JED048	48.01	3.56	1.342
AV1243R	48.1	4.45	1.665
TC053	48.26	2.77	1.069
CRL189	48.26	3.68	1.391
TC422	48.26	5.08	1.86
ZY-494-022	48.3	9.9	3.26
AV1247R	48.4	2.7	1.059
ZY-527-KS8038	48.4	4.4	1.66
AV1763N	48.4	4.7	1.742
RD4841R447	48.41	4.47	1.672
RD50X1.2	50	1.2	0.497
HTJ0052	50	1.5	0.625
RD50R16	50	1.6	0.656
RD50X2	50	2	0.815
RD50X2.3	50	2.3	0.932
RD50R30	50	3	1.196
RD50R40	50	4	1.561
RD508R16	50.8	1.6	0.667
ZY-381-041	50.8	1.9	0.758
RD508R22	50.8	2.2	0.907
AZ847	50.8	2.38	0.977
TC240	50.8	3	1.218
AES015	50.8	3.18	1.285
RD508R46	50.8	4.6	1.81
AABE-021	50.8	6.35	2.395
RD51X3.2	51	3.2	1.313
ZY-ZLD15	51	7	2.614
RD516R535	51.6	5.35	2.106
ZY66987	52	3	1.261
ZYH0021	52	4	1.628
ZY-ZLD19	52	8	2.986
ZY66631	55.8	2.9	1.112
ZY-032-011	56.5	0.9	0.424
TAG006	57	3	1.374
RD57R135	57	13.5	4.982
RD5715R447	57.15	4.47	2.005
RD59X1.5	59	1.5	0.74
RD60X12	60	1.2	0.599
ZY-438-417	60	1.8	0.898
RD60R20	60	2	0.983
RD60X3	60	3	1.446
ZY67489	60	4	1.901
RD60R60	60	6	2.749
ZY-116-060	60	7	3.183
RD60R10	60	10	4.257
TC130	60.32	3.9	1.871
TC124	60.33	5.5	2.576
RD60.5X5	60.5	5	2.381
ZY-044-028	60.5	10	4.285
AOI-002	62	11	4.775
ZY-044-035	62.5	14	5.759
RD63R115	63	11.5	5.025
AQ1363	63.5	3.2	1.636
ZY-368-328	63.5	6.25	3.069
RD635R635	63.5	6.35	3.078
AZ871	63.5	12.7	5.743
RD64.5	64.5	8	3.877
ZY-ZLD01	67	4	2.138
ZY-S08-140	68	9	4.554
DCR001	69.3	1.6	0.918
AES073	69.85	19.05	8.208
ZY-336-002	71	7.5	4.04
RD71.5X5.5	71.5	5.5	3.078
RD73X5	73	5	2.884
TC145	73.03	5.16	2.97
TC154	73.03	7	3.926
AES066	73.66	12.19	6.356
PAR001	74	23	9.986
DT020	74.42	8.64	4.82
RD749R98	74.9	10.05	5.53
AV1766R	75	1.2	0.759
RD75X6.2	75	6.2	3.618
RD76R3	76	3	1.858
CF-R023	76	4.7	2.843
AABE-009	76.2	1.6	1.013
TC201	76.2	2.11	1.326
RD76.2X2.6	76.2	2.6	1.641
TC202	76.2	3	1.863
AQ1361	76.2	3.2	2.004
AQ1199	76.2	3.8	2.359
AM2207	76.2	4.75	2.878
AZ872	76.2	6.35	3.761
AZ868	76.2	9.53	5.389
AZ873	76.2	12.7	6.842
GP-108	76.5	1.6	1.015
AV2005V	76.86	1.2	0.77
ZY-TTNK-05	77	4.5	2.768
RD77R70	77	7	4.155
AQ1109	77.2	1.6	1.037
RD78X4	78	4	2.511
ZY-363-119	79	4	2.875
AV1690R	80	1.6	1.076
ZY-438-416	80	1.8	1.207
RD80R20	80	2	1.323
RD80X3	80	3	1.96
8064	80	10	5.94
AES072	82.55	25.4	12.312
ZY-363-118	85.6	4.3	2.998
ZY-ZLD13	86	3.5	2.449
TC051	88.9	5.49	3.885
TC155	88.9	7.62	5.254
RD90R60	90	6	4.274
RD90R10	90	10	6.785
ZY-TTNK-04	90	11	7.371
RD90R20	90	20	12.007
ZY-044-025	90.5	3.4	2.511
ZY-044-027	90.5	15.5	9.86
ZY-044-036	92	9	6.337
AV1328R	92.7	1.42	1.111
RD93X4	93	4	3.091
ZY-363-064	94.31	2.39	1.86
RD100X3	100	3	2.468
ZY-S11-047	100	8	6.312
ZY66089	100.5	6.75	5.368
RD101.6X6	101.06	6	4.865
AABE-010	101.6	1.6	1.358
TC241	101.6	3	2.508
TC424	101.6	3.18	2.654
AZ876	101.6	4.78	3.926
TC113	101.6	5.74	4.668
RD101.6X6	101.6	6	4.865
TC425	101.6	6.35	5.13
RD1016R1270	101.6	12.7	9.612
RD1016R160	101.6	16	11.661
RD1026R288	102.6	28.8	18.028
RD107.9X3	107.9	3	2.67
AZ874	107.95	12.7	10.26
ZY-368-359	105	3	2.624
RD108X4	108	4	3.529
ZY-TTNK-07	109	10	8.397
ZY66561	111	2.5	2.3
ZY-S01-387	112	9	7.95
ZYH0083	114	3	2.824
ZYH0081	114	5	4.62
TC162	114.3	6	5.53
ZY-TTNK-03	115	13	11.248
RD116X3.8	116	3.8	3.655
RD166X14	116	14	18.25
ZY-363-097	119.2	3	2.989
ZY-S08-197	120	2.5	2.52
ZY-TTNK-02	120	12.5	11.399
RD120X25	120	25	20.145
RD123X4	123	4	4.037
RD123X12	123	12	11.3
RD123X23	123	23	19.51
AV1766R	124.2	1.6	1.681
RD125X2	125	2	2.087
RW5744	127	3.17	3.366
AZ875	127	4.78	4.955
OS-RD015	127	6.35	6.5
RD130X2	130	2	2.171
ZY-363-102	131	3.5	3.827
ZY-TTNK-01	131	12.5	12.563
ZY-044-037	133.5	5.25	5.711
RD135R14	135	14	14.369
RD138X4	138	4	4.547
TC477	141.3	6.55	7.487
RD1475R14	147.5	14	15.854
ZY-197-001	150	8	9.636
RD150X32.5	150	32.5	32.392
RD150X40	150	40	37.322
ZYW0384	151.5	19	21.351
RD152R5	152	5	6.234
RD152X27.25	152	27.52	28.836
AABE-077	152.4	2.5	3.178
AZ870	152.4	3.18	4.026
TC379	152.4	6.35	7.955
ZY66548	153	4	5.148
ZYW0385	154.5	26	28.339
RD156R14	156	14	16.862
ZY-143-002	161	4	5.386
ZY-S01-389	162	9	11.81
ZY-143-001	163	5	6.701
ZY-336-001	163	19	23.207
ZYW0022	166	17	21.484
ZY66549	168	4	5.668
ZY-S08-205	168	8.5	11.627
ZY-001-027	170	4	5.632
ZY66601	172	7	9.907
RD176R14	176.5	14	19.51
RD178X27.5	178	27.5	35.105
5RD180R35	180	3.5	5.241
RD180X40	180	40	47.501
ZY66564	183	4	6.14
RD186R14	186	14	20.65
RD194R14	194	14	21.61
ZY66550	200	5	8.423
ZY-S01-388	202	9	14.898
RD203X61.5	203	61.5	73.815
AZ869	203.2	3.18	5.395
RD205R15	205.5	15	24.507
RD215X14	215	14	24.133
AZ854	219.08	8.18	14.634
RD220X70	220	70	89.065
RD225R14	225	14	25.056
RD235R14	235	14	26.244
RD245R14	245	14	27.43
5RD256.5X15MM	256.5	15	30.726
ZY-S01-386	262	9	19.528
