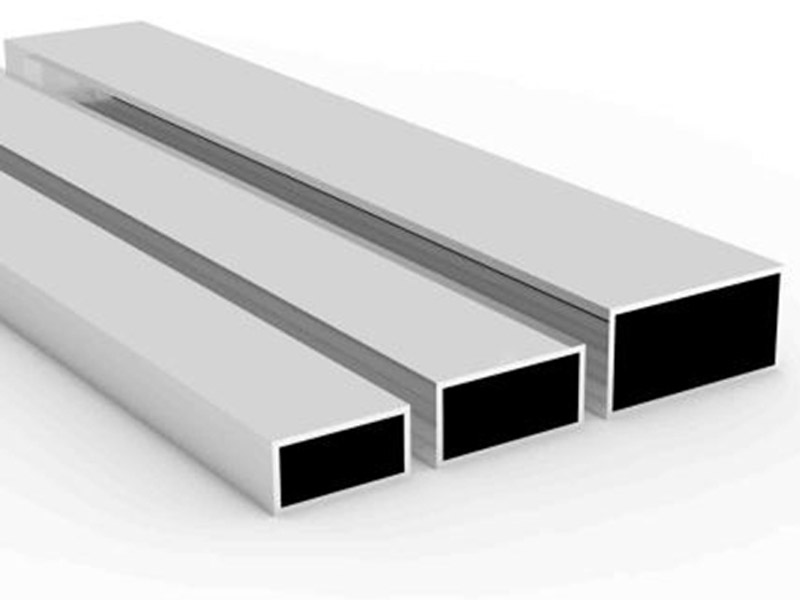

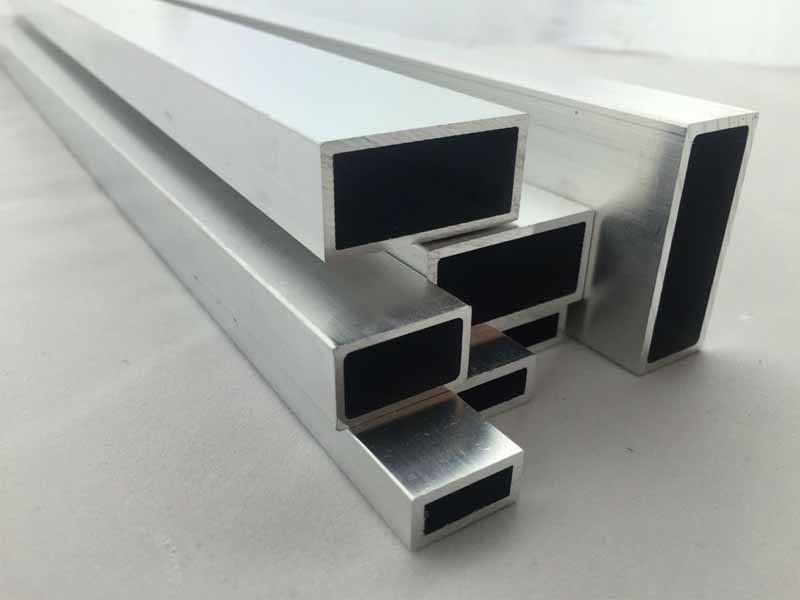

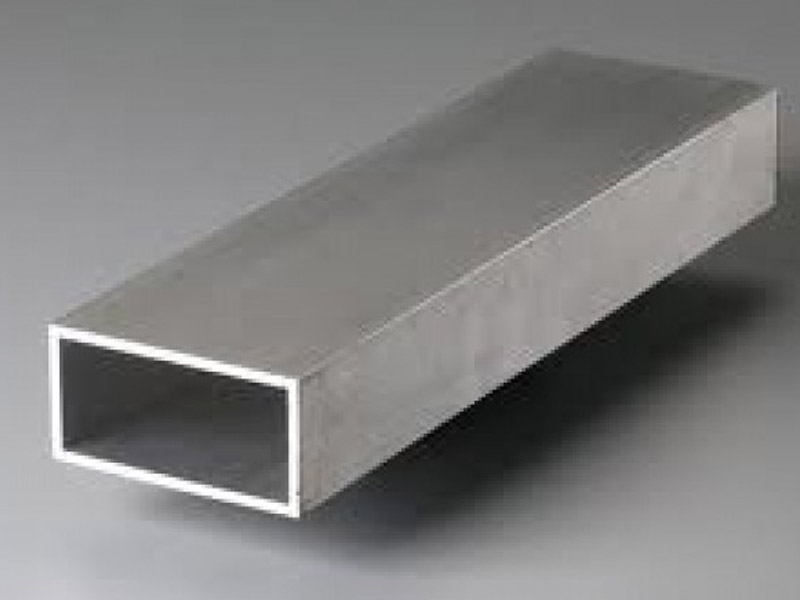

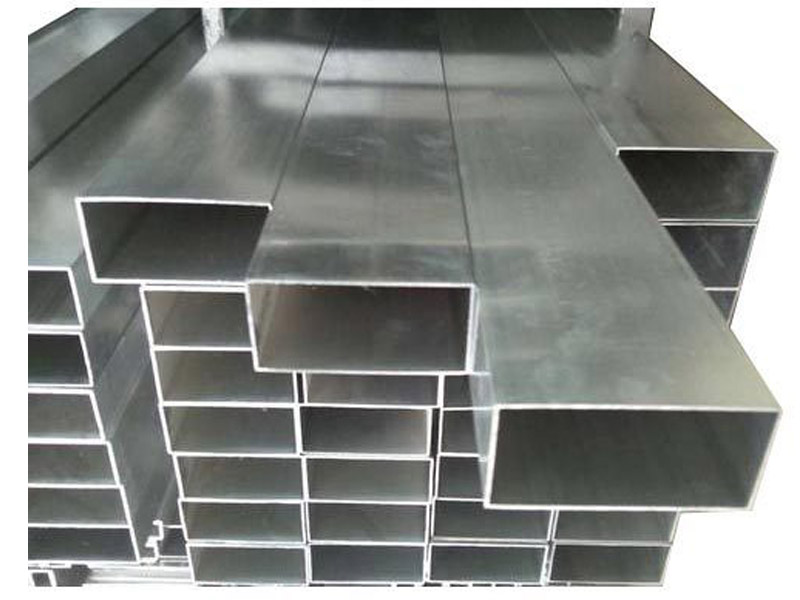

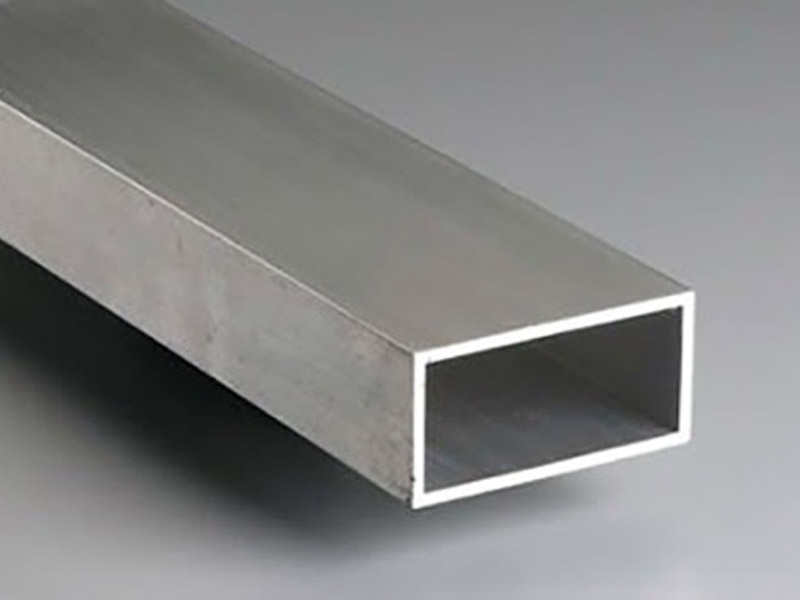

Aluminium Rectangular Tube

Name: Aluminium Rectangular Tube
Brand: Shenzhen Oriental Turdo Ironwares Co., Ltd.

Aluminium rectangle tube is frequently used in places where lightweight and corrosion resistance is important. Thus, similar to the square aluminium profile, aluminium rectangular profile is also widely found in framework, support columns, gates and fencing, handrails and protective barriers.

In Otalum, we offer a wide range of rectangular aluminium profiles with a variety of alloys, sizes and finishes. They can be cut to size if the existing products cannot meet your requirements.

Precise cutting to length and processing services are available with the fastest lead time.

Get a Quote

Features of Aluminum Rectangular Tube

Alloy	Standard	Surface Treatment	Further Process	Certificate
6005 T5/T6, 6060 T5/T6, 6061 T4/T6, 6063 T5/T6, 6463 T5/T6, 6082 T5/T6, etc.	GB 5237-2008, JISH, AAMA, GB, BS, En	Mill finish, Powder Coating, Anodizing, Wooden grain, Electrophoresis, PVDF Painting, Sanding blasting, Polishing, etc.	Drilling, Bending, Welding, Precise cutting, Punching, Fabrication of finished products, etc.	CE, DNV, TUV, ISO9001

Specifications of Aluminum Rectangular Tube

Aluminum Rectangular Tube

B=length, mm

H=height, mm

T=thickness, mm

Weight(kg/m)

Item	B	H	T	Weight(kg/m)
SQ12X7X0.8	12	7	0.8	0.076
ZY-CXG02	12	7	1.1	0.1
ZYW0056	12	10	1.5	0.154
SQ14X9X0.8	14	9	0.8	0.092
SQ15X5.6X0.8	15	5.6	0.8	0.082
SQ15X10X0.9	15	10	0.9	0.114
ZY-157-008	15.5	10	1.5	0.184
ZY-157-002	16	10	1.5	0.186
ZY66237	18	5	1	0.113
ZY66236	18	7	1	0.124
SQ18X12X1.5	18	12	1.5	0.219
SQ19X13X1.2	19	13	1.2	0.194
SQ1916T16	19	16	1.6	0.275
SQ20X10X0.8	20	10	0.8	0.123
ARC051	20	10	1	0.151
SQ25X15X2	20	15	2	0.393
SQ20X18X1.2	20	18	1.2	0.23
ZYP38B07	22	10	1.2	0.194
SQ22.5X15X0.8	22.5	15	0.8	0.154
SQ25X5.6X0.8	25	5.6	0.8	0.124
SQ25X10X1.2	25	10	1.2	0.213
ZY-036-079	25	13	4	0.683
SQ25X15X0.8	25	15	0.8	0.165
SQ25X15X1.5	25	15	1.5	0.3
SQ25X18X2.0	25	18	2	0.421
SQ25X20X1.2	25	20	1.2	0.275
SQ2540T16	25	40	1.6	0.535
AI-SQ2576T25	25	76	2.5	1.296
ZY66130	25.4	12.7	1	0.195
TC274	25.4	12.7	2.24	0.408
AZ830	25.4	12.7	3.18	0.545
AIX-44105	25.4	19.05	1	0.23
SQ25.4X25.4X2	25.4	25.4	2	0.511
SQ30X10X1.0	30	10	1	0.207
ARC052	30	15	1	0.232
ZY-001-136	30	15	1.5	0.344
ZYW0008	30	15.3	1.2	0.275
SQ30X20T1	30	20	1	0.259
SQ30X20X1.2	30	20	1.2	0.309
ZY-552-P8523	31.6	24	1.4	0.404
ZYW0261	32	21.5	1.4	0.397
ZYRMQ21009	32	24	1	0.298
2642	32	28	2	0.597
SQ32.96X31.32X3	32.76	31.32	3	0.904
SQ33X25X1.2	33	25	1.2	0.363
SQ33X25X1.4	33	25	1.4	0.423
SQ35X15X1.2	35	15	1.2	0.311
SQ35X18X2	35	18	2	0.535
ZY-017-045	35	20	2	0.557
ZY66501	35	25	1.5	0.465
SQ37X33.5X2.0	37	33.5	2	0.726
SQ39.5X37X2.0	39.5	37	2	0.792
78857	38	10	1.2	0.294
ZY-531-054	38	20	2	0.59
0366-0.8	38	25	0.8	0.265
0366-0.9	38	25	0.9	0.297
0366-1.0	38	25	1	0.329
0366-1.2	38	25	1.2	0.392
0366-1.4	38	25	1.4	0.461
SQ382515	38	25	1.5	0.486
SQ38X25X2.4	38	25	2.4	0.753
ZY-S18-038	38	27	1.35	0.459
SQ38.1X17.45X3.18	38.1	17.45	3.18	0.845
TC268	38.1	19.05	3	0.829
OS-SQ005	38.1	19.05	3.17	0.869
TC237	38.1	25.4	3	0.932
ZY66943	38.5	25	1	0.336
SQ40X10X1.1	40	10	1.1	0.284
ZY-232-263	40	15	1.4	0.399
SQ40X20X1.0	40	20	1	0.317
SQ40X20X1.1	40	20	1.1	0.343
SQ40X20X1.6	40	20	1.6	0.491
SQ40X20X2	40	20	2	0.605
AABE-058	40	20	3	0.875
SQ40X25X1.0	40	25	1	0.344
SQ402525	40	25	2.5	0.813
SQ40X25X4	40	25	4	1.231
SQ40X28X1.2	40	28	1.2	0.424
ZY-S01-695	40	30	1.45	0.532
ZY-290-023	40	30	4	1.354
ZYMQ17536	42	13.5	2	0.562
SQ44.45X19.05X1.0	44.45	19.05	1	0.336
ZY-S06-211	44.5	25.4	1.7	0.617
SQ44.8X24.8X1.6	44.8	24.8	1.6	0.579
SQ45X12X2.0	45	12	2	0.572
ZY-232-TR100	45	20	1.4	0.475
ZYW0109	45	30	1	0.394
2641	47	28	2	0.759
SQ48X25X2.5	48	25	2.5	0.972
SQ5010T12	50	10	1.2	0.38
ZY-236-019	50	13	1.45	0.47
SQ50X15T1.2	50	15	1.2	0.405
SQ50X20X1.4	50	20	1.4	0.513
ZYRMQ27836	50	20	2	0.721
SQ50X20X3.0	50	20	3	1.037
0367-0.8	50	25	0.8	0.316
0367-0.9	50	25	0.9	0.356
SQ50X25X1	50	25	1	0.394
0367-1.2	50	25	1.2	0.47
SQ50X25X1.4	50	25	1.4	0.545
ZY-236-020	50	25	1.45	0.564
SQ50X25X1.6	50	25	1.6	0.621
SQ5025T2	50	25	2	0.781
SQ5025T25	50	25	2.5	0.963
SQ50X25X3	50	25	3	1.118
ZY-286-152	50	30	1	0.426
SQ50X30X1.2	50	30	1.2	0.502
SQ50X30X1.5	50	30	1.5	0.631
ZY67090	50	30	2	0.83
SQ50X30X2.8	50	30	2.8	1.126
SQ50X30X3.0	50	30	3	1.199
0577-1.0	50	38	1	0.464
0577-1.2	50	38	1.2	0.554
ZYW0047	50	40	2.2	1.015
SQ50X40X2.5	50	40	2.5	1.152
TC363	50.34	45.86	2.24	1.164
OS-SQ038	50.8	25.4	1.42	0.562
TC286	50.8	25.4	1.52	0.6
TC197	50.8	25.4	2.24	0.867
SQ50.8X25.4X2.8	50.8	25.4	2.8	1.067
TC238	50.8	25.4	3	1.137
70056KMB	50.8	25.4	3.18	1.212
AZ831	50.8	25.4	6.35	2.176
AZ853	50.8	31.75	3.18	1.31
TC289	50.8	38.1	3	1.342
AZ832	50.8	38.1	3.18	1.418
SQ55X25X1.4	55	25	1.4	0.583
ZY-560-028	56.6	35.2	0.8	0.393
ZY66748	59	35	1.1	0.551
SQ60X20X1.2	60	20	1.2	0.502
SQ60X20X1.4	60	20	1.4	0.59
ZYW0221	60	25	2	0.907
ZYMQ184A21	60	28	1	0.466
ZYW0005	60	30	1.2	0.567
ZY-025-038	60	30	1.3	0.613
ZY-236-021	60	30	1.45	0.683
SQ60X30X1.5	60	30	1.5	0.713
SQ60X30-2.0	60	30	2	0.929
SQ60X40X1.2	60	40	1.2	0.639
SQ60X40X1.4	60	40	1.4	0.743
SQ60X40X1.2	60	40	1.2	0.639
SQ60X40X2.0	60	40	2	1.037
AM8015	60	40	3	1.523
AV3127N	60	40	4	1.987
SQ60X50X1.2	60	50	1.2	0.697
SQ60X50X1.5	60	50	1.5	0.876
SQ60X50X3.0	60	50	3	1.704
TC198	63.5	31.75	3	1.447
RW10829	63.5	31.75	3.17	1.54
ZY-247-038	65	33	1.2	0.625
SQ65X35X2.0	65	35	2	1.041
SQ65X40X1.5	65	40	1.5	0.829
ZY-236-022	66	20	1.45	0.651
0578-1.0	67	25	1	0.486
0578-1.2	67	25	1.2	0.581
ZYMQ160E14	68	10	1.6	0.652
SQ70X25X1	70	25	1	0.502
ZY-236-027	70	25	1.35	0.672
SQ70X30X1.6	70	30	1.6	0.846
AV3126N	70	50	4	2.419
ZYHHMA01	70	53	1	0.661
ZYW0289	70	55	2	1.304
SQ72X20X1.05	72	20	1.05	0.51
ZYW0351	75	10	1.2	0.534
ZY-CH0254	75	25	1	0.535
ZY-236-023	75	25	1.45	0.761
ZY-S20-024	75	35	1.5	0.876
SQ75X44X3	75	44	3	1.831
AV2026	75	50	2.5	1.62
AV2033	75	50	3	1.928
0364-1.0	76	25	1	0.535
0364-1.2	76	25	1.2	0.64
0364-1.4	76	25	1.4	0.743
SQ76X25X1.6	76	25	1.6	0.845
SQ76X25X2.0	76	25	2	1.048
SQ76X38X2	76	38	2	1.188
SQ76X40X4.0	76	40	4	2.359
0363-0.9	76	44	0.9	0.575
0363-1.0	76	44	1	0.637
0363-1.2	76	44	1.2	0.761
0363-1.4	76	44	1.4	0.886
0363-1.5	76	44	1.5	0.948
SQ76X44X1.8	76	44	1.8	1.131
0363-2.0	76	44	2	1.253
0363-3.0	76	44	3	1.847
SQ76X75X4.0	76	75	4	3.123
BK85	76.2	25.4	1.5	0.799
SQ76225424	76.2	25.4	2.4	1.26
TC287	76.2	25.4	3	1.55
OS-SQ028	76.2	25.4	3.17	1.631
TC334	76.2	38	3	1.755
SQ76.2X38.1X1	76.2	38.1	1	0.608
OS-SQ006	76.2	38.1	3.17	1.847
BK60	76.2	44.45	1.6	1.015
AZ834	76.2	44.45	3.18	1.963
TC239	76.2	50.8	3	1.96
70053KMB	76.2	50.8	3.18	2.071
TC416	76.2	50.8	6.35	3.92
ZY-ZJ-007	78.1	73	5	3.65
17802	79	44	1.1	0.718
SQ80X10X1.4	80	10	1.4	0.666
SQ80X14X1.2	80	14	1.2	0.601
SQ80X20X2.0	80	20	2	1.048
SQ80X25X1.0	80	25	1	0.556
SQ80X25X1.2	80	25	1.2	0.664
SQ80X25X1.4	80	25	1.4	0.772
ZY-020-023	80	25	5	2.594
ZY-020-024	80	35	5	2.867
SQ80X40X1.2	80	40	1.2	0.77
ZY-236-024	80	40	1.45	0.918
ZY-438-347	80	40	1.5	0.958
SQ80X40X2	80	40	2	1.253
AM8019	80	40	3	1.847
SQ80X44X0.95	80	44	0.95	0.626
SQ80X44X1.2	80	44	1.2	0.778
SQ80X44X1.4	80	44	1.4	0.915
SQ80X50X1.2	80	50	1.5	0.835
SQ80X50X2	80	50	2	1.376
SQ5080T30	80	50	3	2.009
SQ80X60X2.0	80	60	2	1.485
SQ80X60X2.5	80	60	2.5	1.823
SQ80X60X3.0	80	60	3	2.171
SQ81X20X1.05	81	20	1.05	0.562
ZY8130	85	25	0.9	0.536
SQ85X25X1.0	85	25	1	0.583
SQ85X25X1.2	85	25	1.2	0.697
SQ85X25X1.4	85	25	1.4	0.81
SQ85X30X1.3	85	30	1.3	0.788
SQ85X44T1.0	85	44	1	0.686
SQ85X44T1.2	85	44	1.2	0.821
SQ85X44T1.4	85	44	1.4	0.953
SQ88X25X1.0	88	25	1	0.599
ZYSQ8825-1.15	88	25	1.15	0.688
ZYSQ8844-1.15	88	44	1.15	0.805
SQ88X44X1.75	88	44	1.75	1.229
SQ88X44X2.0	88	44	2	1.398
0368-1.0	90	25	1	0.61
0368-1.2	90	25	1.2	0.729
0375-1.2	90	44	1.2	0.853
0375-1.4	90	44	1.4	0.991
SQ90X50X1.45	90	50	1.45	1.075
SQ90X50X1.8	90	50	1.8	1.326
ZY-S11-065	90	75	4.4	3.754
SQ95X65X1.5	95	65	1.5	1.286
SQ95X83X2.0	95	83	2	1.9
AIX-TTP-15	100	13.5	1.5	0.9
CF-TTP-10	100	16	2	1.21
0361-1.2	100	25	1.2	0.794
0361-1.4	100	25	1.4	0.923
AI-SQ10025T30	100	25	3	1.928
AABE-076	100	25	4	2.527
SQ100X30X1.5	100	30	1.5	1.04
ZY-286-180	100	30	3	2.031
SQ100X34X1.3	100	34	1.3	0.923
SQ100X34T1.9	100	34	1.9	1.337
ZY-531-015	100	38	3	2.162
ZY-236-025	100	40	1.75	1.291
SQ100X40X3	100	40	3	2.171
0362-1.2	100	44	1.2	0.918
0362-1.4	100	44	1.4	1.067
0362-1.5	100	44	1.5	1.142
0362-1.6	100	44	1.6	1.218
0362-2.0	100	44	2	1.512
0362-3.0	100	44	3	2.236
